FirewallDisabling SIP-ALG is an essential part of configuring the firewall on your router and optimizing it for IP 1 Services. Many ALGs (including Cisco's) have bugs which cause call flow and registration failures. Some ALGs (including Cisco's) intermittently miss some packets, or in the case of fragmented packets, do not even examine and change headers.

When SIP-ALG is enabled, CP SBCs determine the endpoints are publicly addressed and therefore do not need frequent registration refreshes to keep the firewall port open between SBC and the endpoint. In this case, the firewall can close the port between IP 1 Services and the device endpoint, causing an inability to receive incoming calls. The most common issues that result from enabled SIP-ALG when using Virtual Office applications include:

• Outbound call status stuck in Dialing...
• An inability to field incoming calls (call continues to ring and cannot be answered).
• Phones not able to register with IP 1 Services.

Additional SIP-ALG information and settings can be found at http://www.voip-info.org/wiki/view/Routers+SIP+ALG.

Device Guidance

GuidanceIt is highly recommended you have your network or IT administrator or a qualified professional configure the following in your router or firewall.

ALG settings are typically found in the administration interface of the router, but each router’s configuration setup will differ. Check the manufacturer’s documentation to understand where to find and disable this setting in your device. (Please note that many routers will re-enable ALG by default if the router is ever reset or powered off then back on.)

The following are general guidelines for popular makes and models. If you don't see your router or manufacturer below, consult the manufacturer's documentation.

Adtran Routers

Add the following line:

no ip firewall alg sip

Arris Gateways

1. Go to Advanced > Options.

2. Disable (uncheck) SIP.

3. Click Apply.

Arris Gateway IP Address: 192.168.0.1

Username: admin

Password: motorola

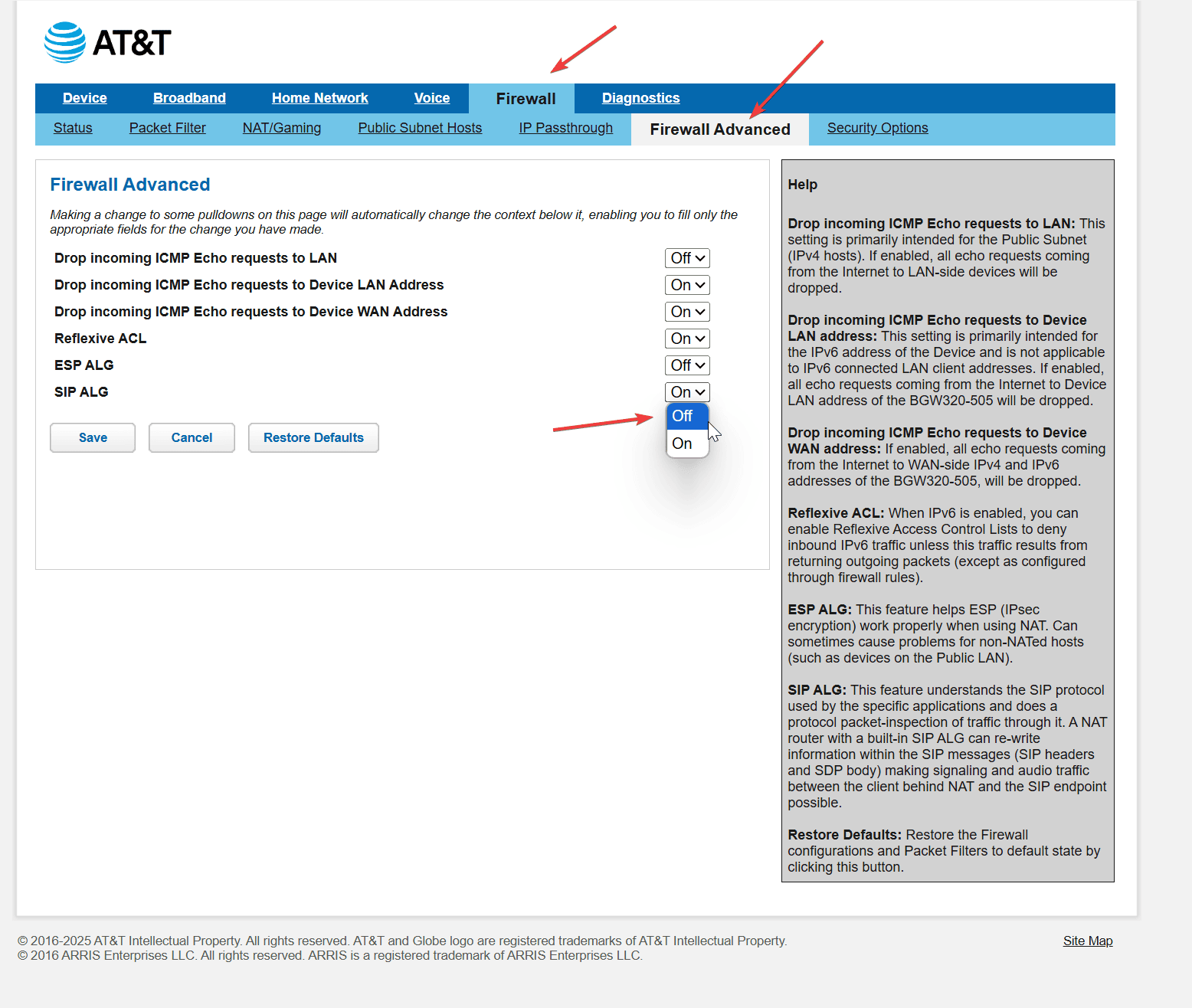

Arris Gateways (AT&T)

1. Go to http://192.168.1.254/ on your browser (password should be on a sticker on the physical gateway)
2. Go to Firewall
3. Go to Firewall Advanced
4. Disable SIP ALG by setting it to Off

ASA Routers

1. Go to policy-map global_policy > class inspection_default.

2. Enter:

no inspect sip

Cisco (non-ASA)

On Cisco devices, SIP-ALG is referred to as SIP Fixup and is enabled by default on both routers and Pix

devices. Because this is a default setting, no indication of it being "on" or "off" is visible in the configuration.

To disable SIP Fixup, issue the following commands:

General and Enterprise class routers:

no ip nat service sip tcp port 5060

no ip nat service sip udp port 5060

Pix Devices:

no fixup protocol sip 5060

no fixup protocol sip udp 5060

D-Link Routers

1. From the admin interface page of the router, navigate to Advanced settings.

2. Under Application Level Gateway (ALG) Configuration, uncheck the SIP option.

Fortinet Routers

From the CLI interface, type the following commands:

config system session-helper

show system session-helper

(Look for the session instance that refers to SIP—likely to be #12, then type:)

Delete 12

(Or the number corresponding to SIP reference)

To confirm deletion, run show system session-helper again.

Ensure there is no reference to SIP or port 5060

Linksys Routers

General Linksys Guidelines

1. From the ADMIN page of the router, navigate to [Administration] > [Advanced]

2. Look for and disable the SIP ALG option.

Linksys BEFSR41

1. From the ADMIN page of the router, navigate to [APPLICATIONS & GAMING]>[PORTTRIGGERING].

2. Enter [TCP] as the application.

3. Enter [5060] into the Start Port and End Port for both the Triggering Range and ForwardedRange.

4. Check Enable.

5. Save Settings.

6. Reboot IP phone.

Netgear Routers

1. From the administration interface, go to Security>Firewall>Advanced settings.

2. Uncheck the option for SIP ALG.

3. Under Security>Firewall>Session Limit, increase the UDP timeout to the 300 seconds.

SonicWall Routers

1. Uncheck the box for Use SIP Header Transformation.

2. Disable consistent NAT.

When setting the Global Default UDP timeout value on a SonicWall firewall, you must still fix the pre-existing rules' individual UDP timeout values. New rules will inherit the Global Default. Increase the UDPtimeout to the suggested 300 seconds both globally on the firewall and the specific out-bound firewall rule (or the default rule, as the case may be).

UBEE Gateways

1. Go to Advanced>Options.

2. Disable (uncheck) SIP.

3. Disable (uncheck) RTSP.

4. Click Apply.

ZyXEL ZyWALL USG Routers

1. Go to Settings>Configuration>Network>ALG.

2. Disable SIP ALG.
